13 Folding Carton Styles

These are folding carton designs, not corrugated. They all have to be glued with either hot melt or double faced tape.

The 3 main parameters to key in are: Length Width Depth

• Length is always larger than Width.

• The Depth of a tray cannot be larger that half of the Width.

• Width on Auto Bottoms should not be less than 1.625"

• There are parameters for design number, customer name, etc.

• Fill in the pertinent data, and you have a folding carton design built in inches.

• Designs contains data for Bleed lines, No Ink areas, Copy Safe areas, and Panel annotations for orienting graphics.

• The designs also contains a 4up layout component called 2022005B_LO.

• There are a few issues to work out with dimensions on cartons that are small.

Click on the picture to open that style.

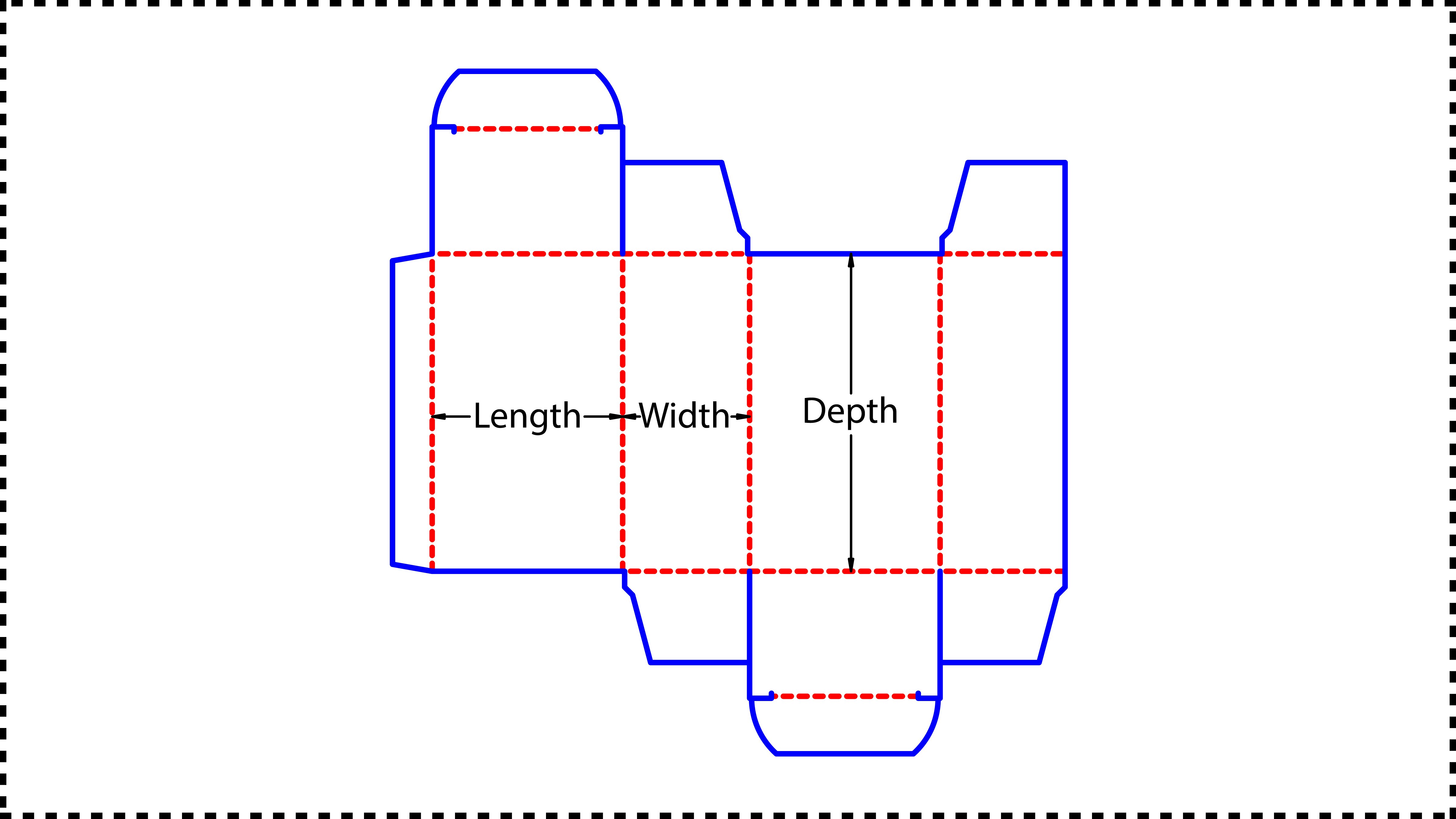

ReverseTuck

@LayeredPaperArt

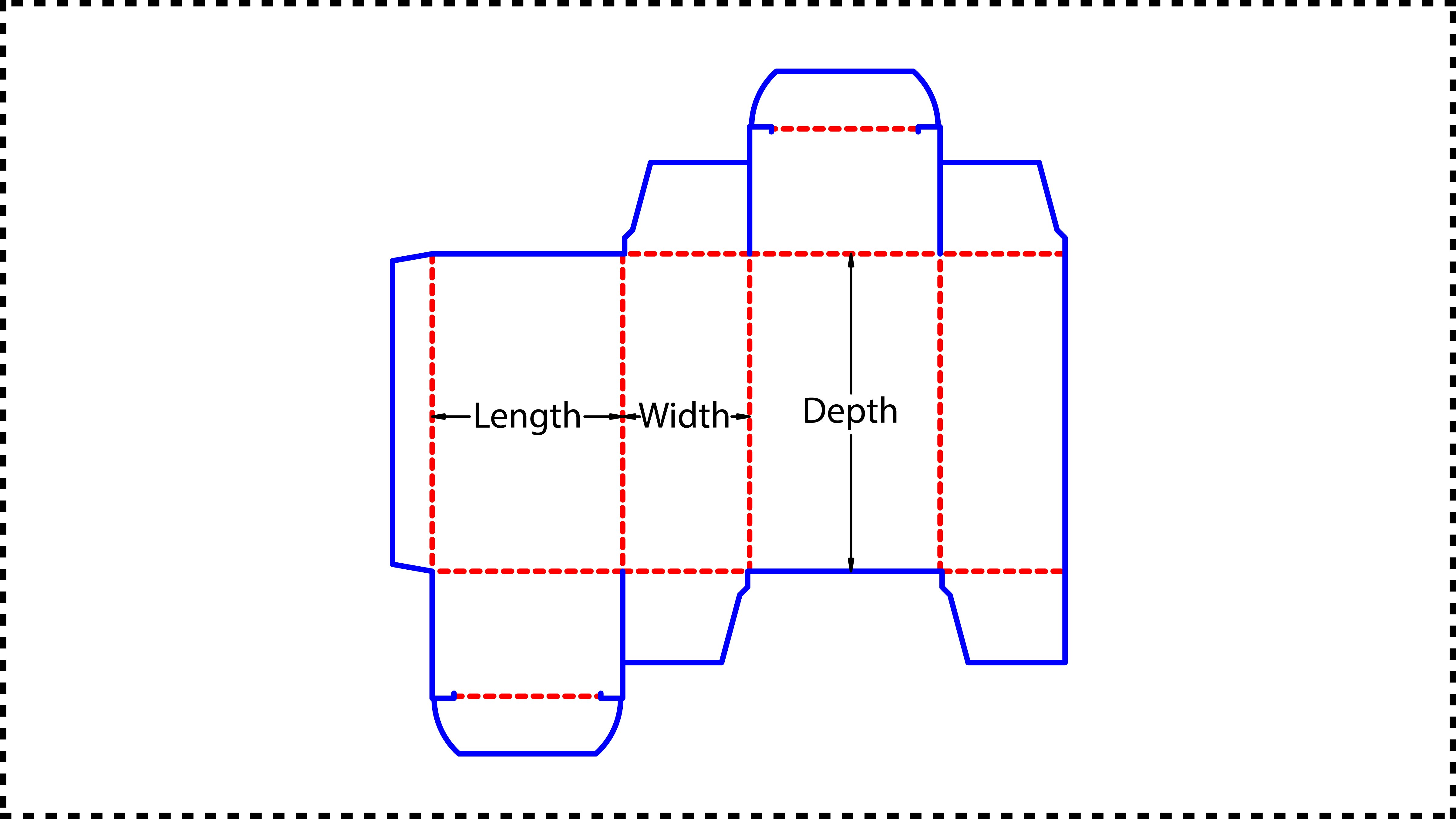

French Reverse Tuck

@LayeredPaperArt

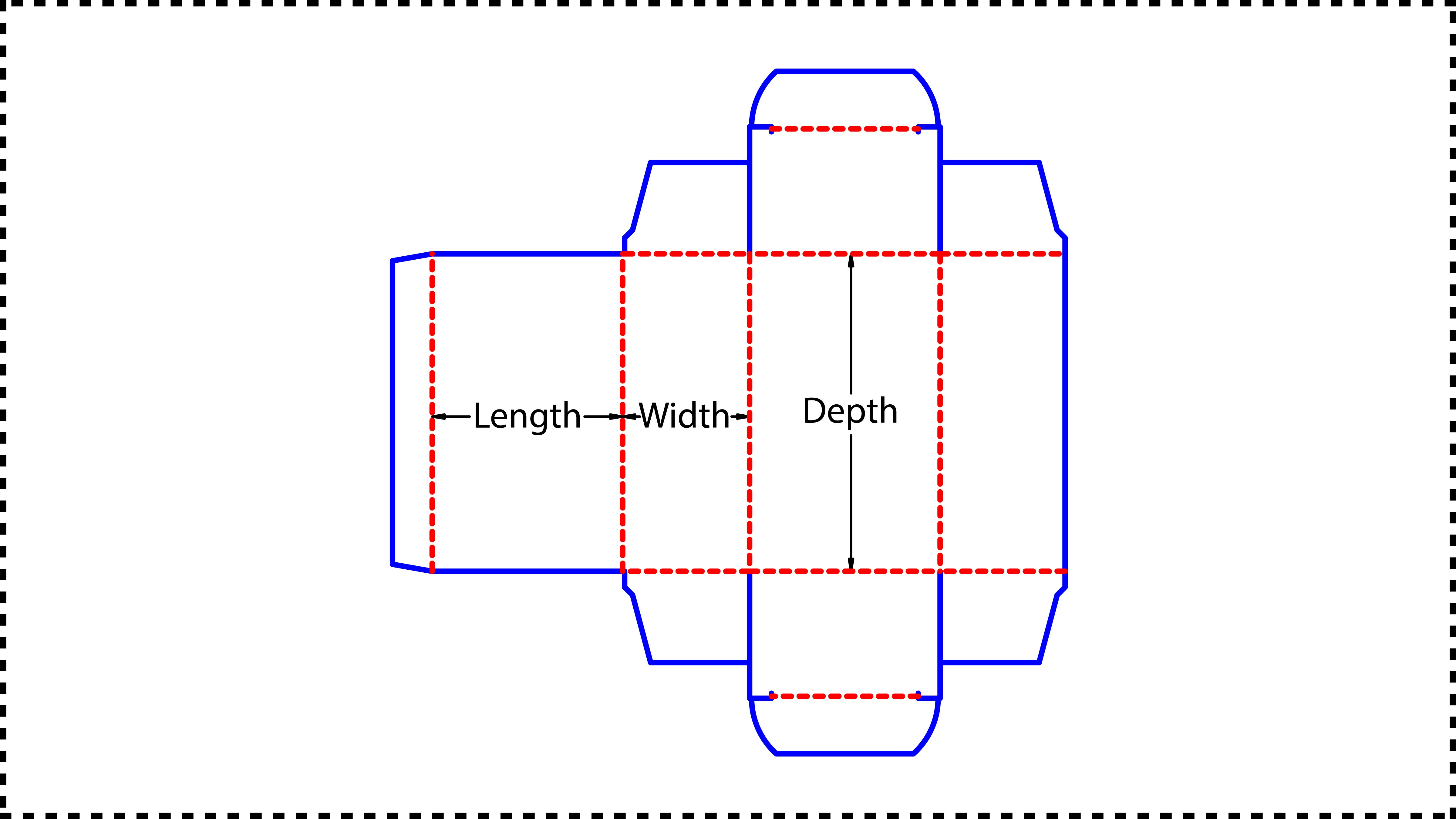

Straight Tuck

@LayeredPaperArt

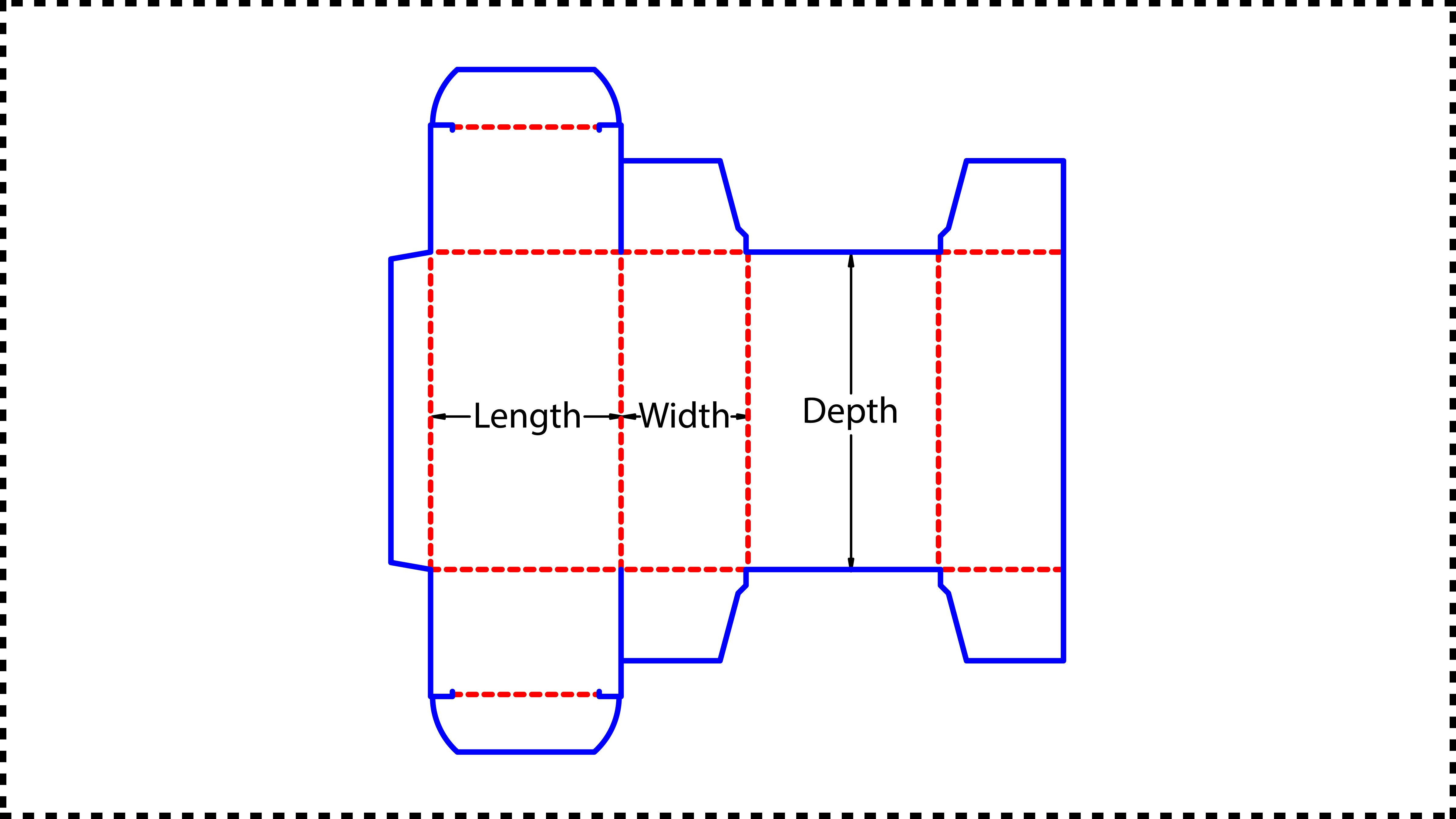

Airplane Tuck

@LayeredPaperArt

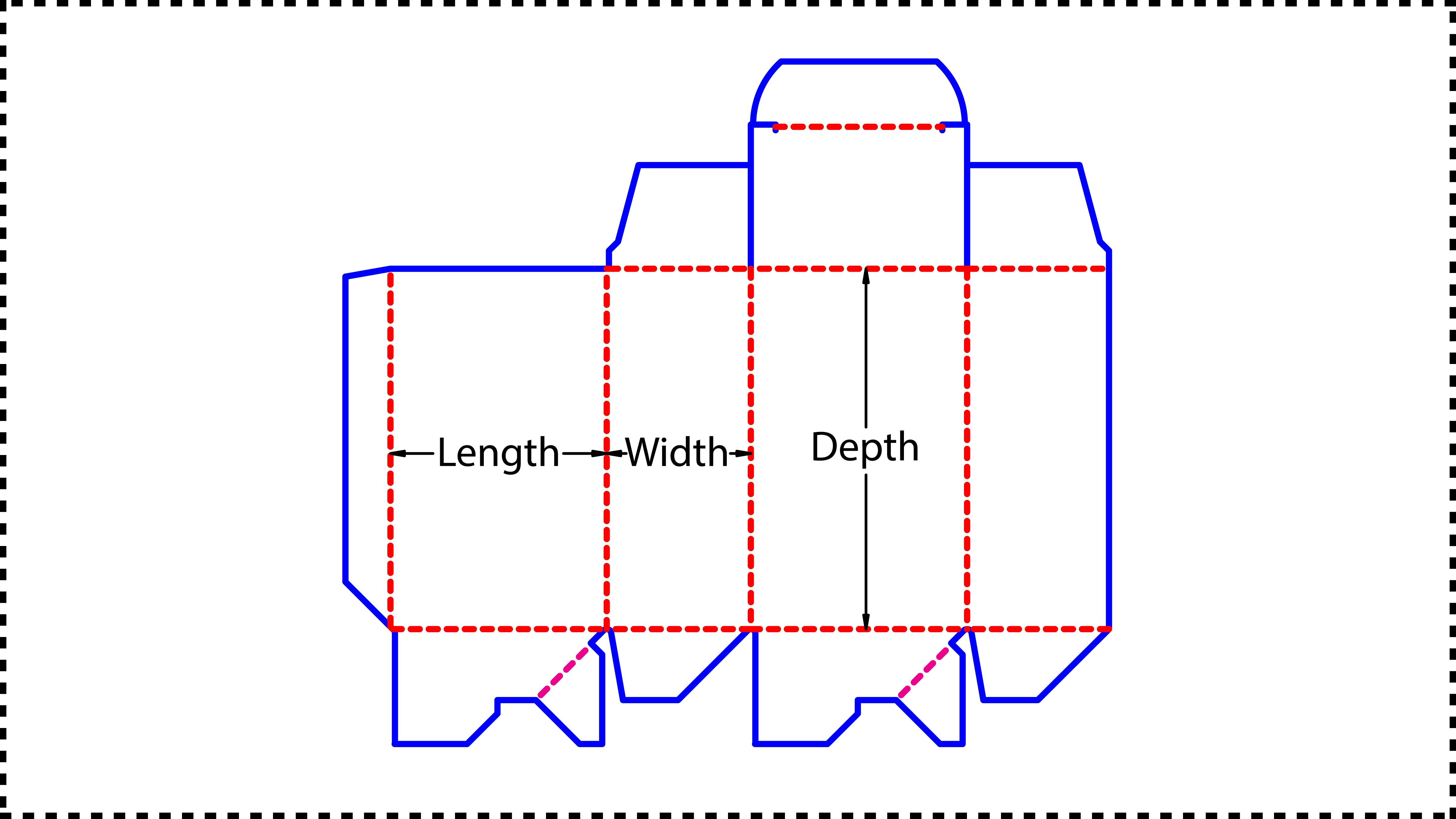

Tuck Top Auto Bottom Tuck to Back

@LayeredPaperArt

|------------------------------------------------------------------------------------------------------------|

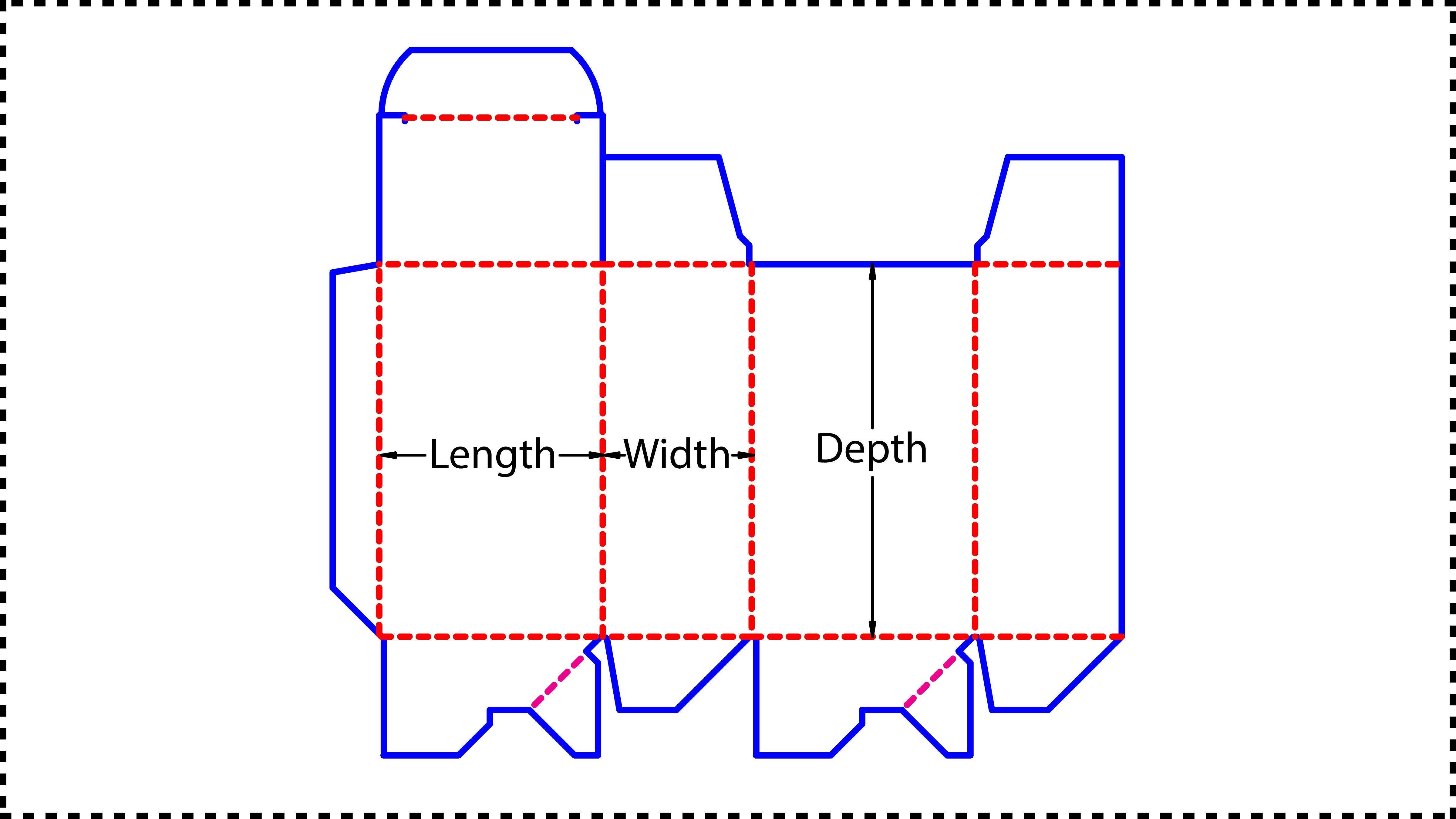

Tuck Top Auto Bottom Tuck to Front

@LayeredPaperArt

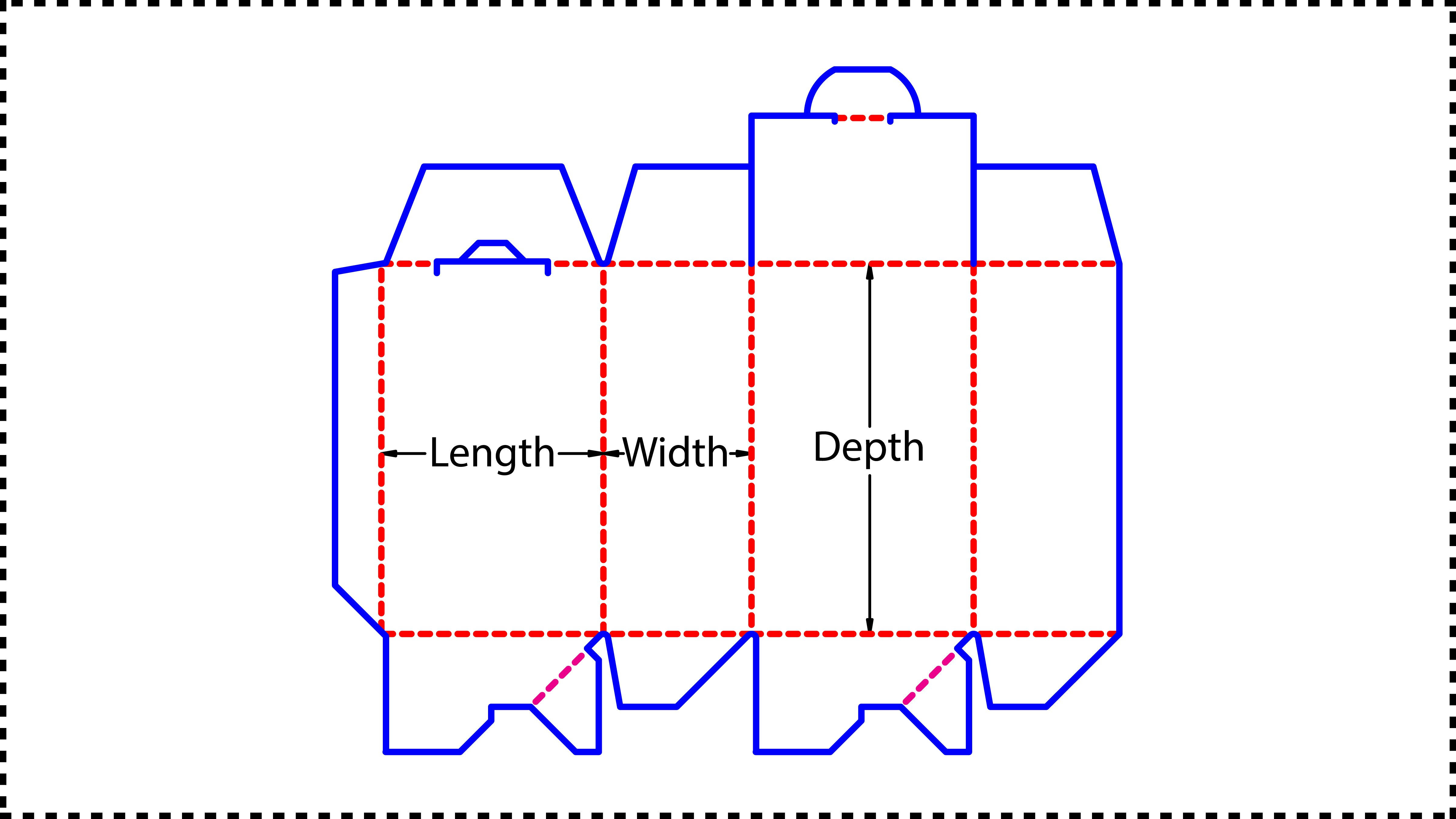

Partial Tuck Top Auto Bottom Tuck to Back

@LayeredPaperArt

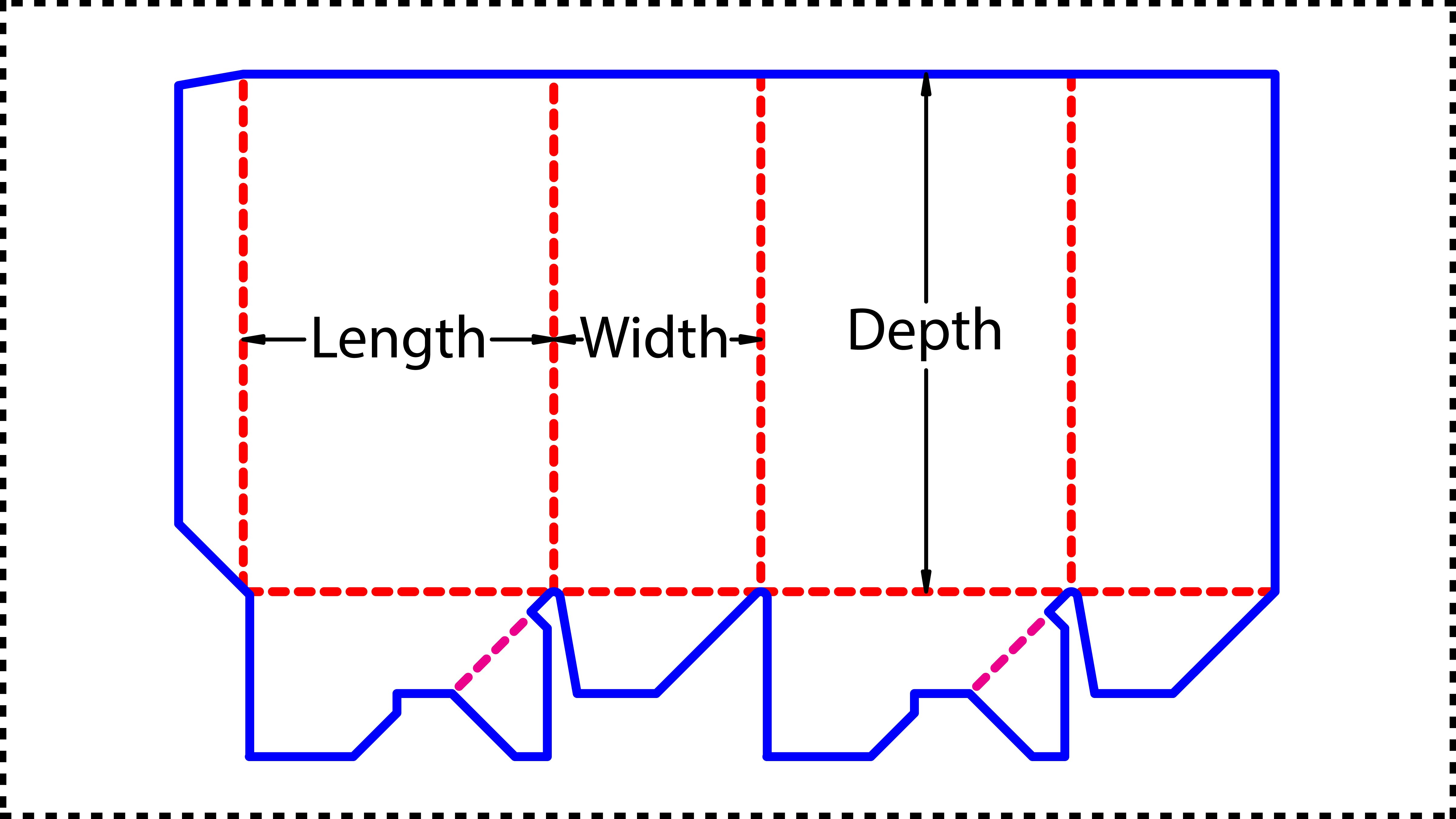

Open Top Auto Bottom

@LayeredPaperArt

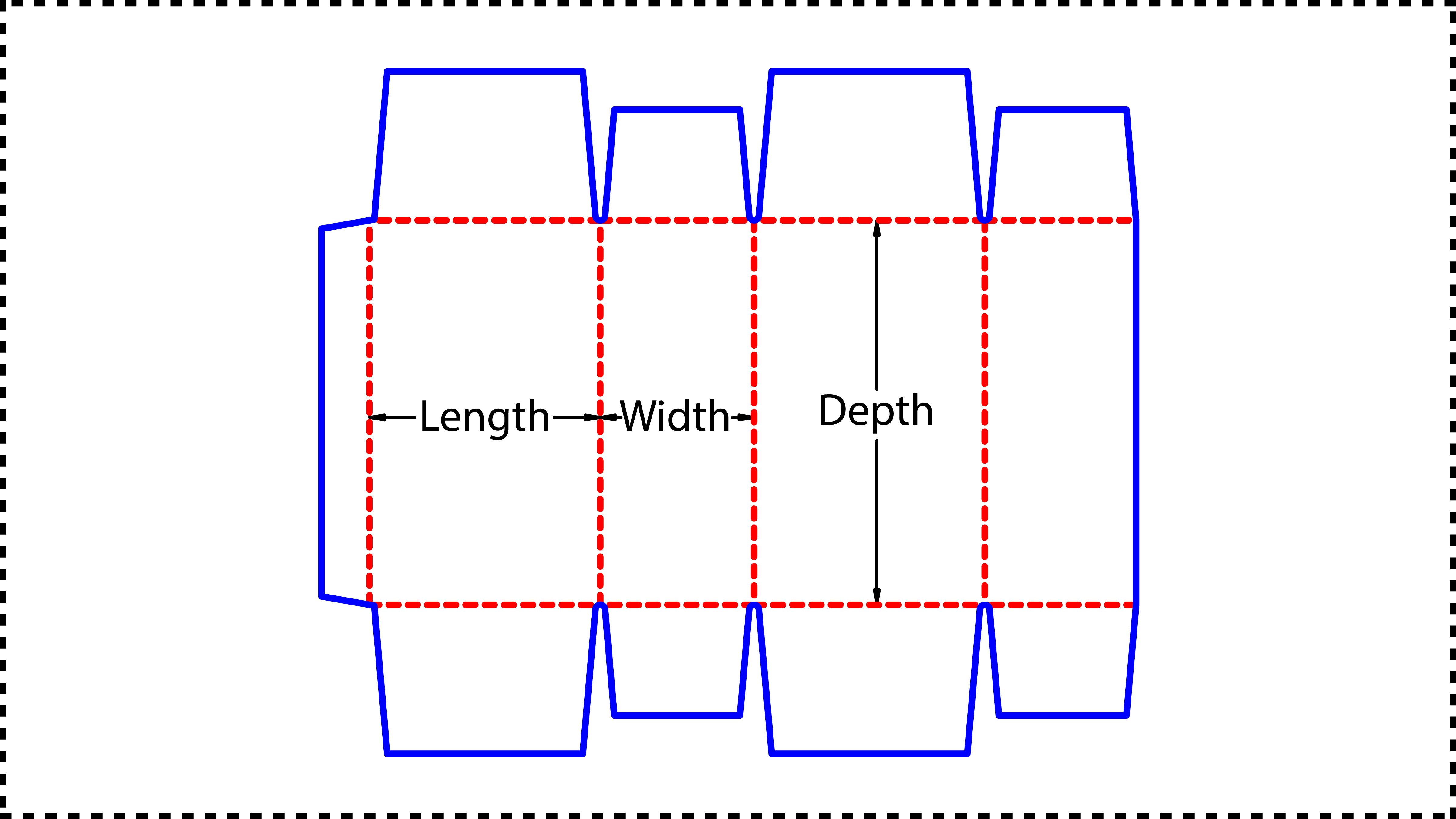

Full Seal End with Rads

@LayeredPaperArt

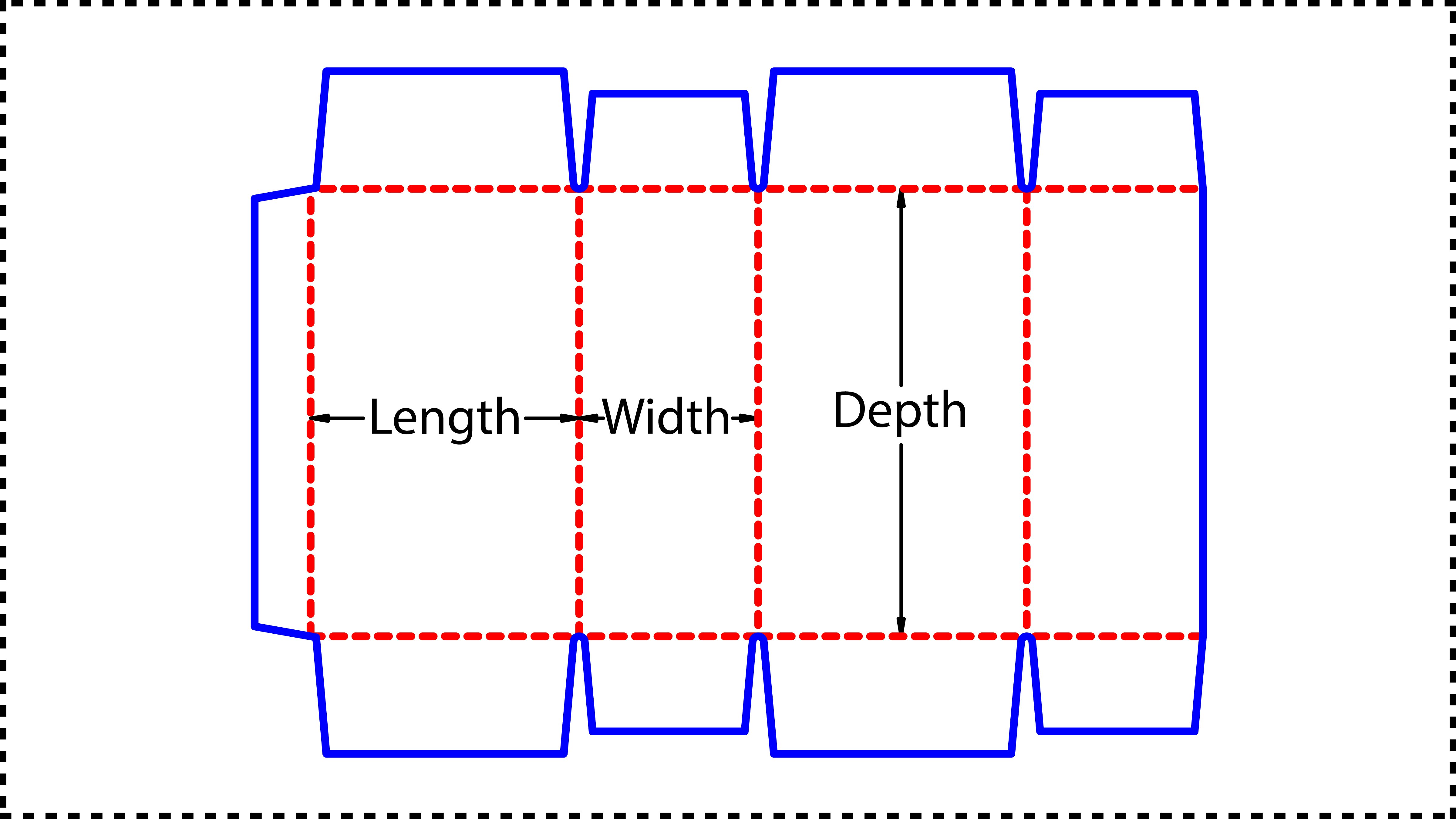

Econo Seal End with Rads

@LayeredPaperArt

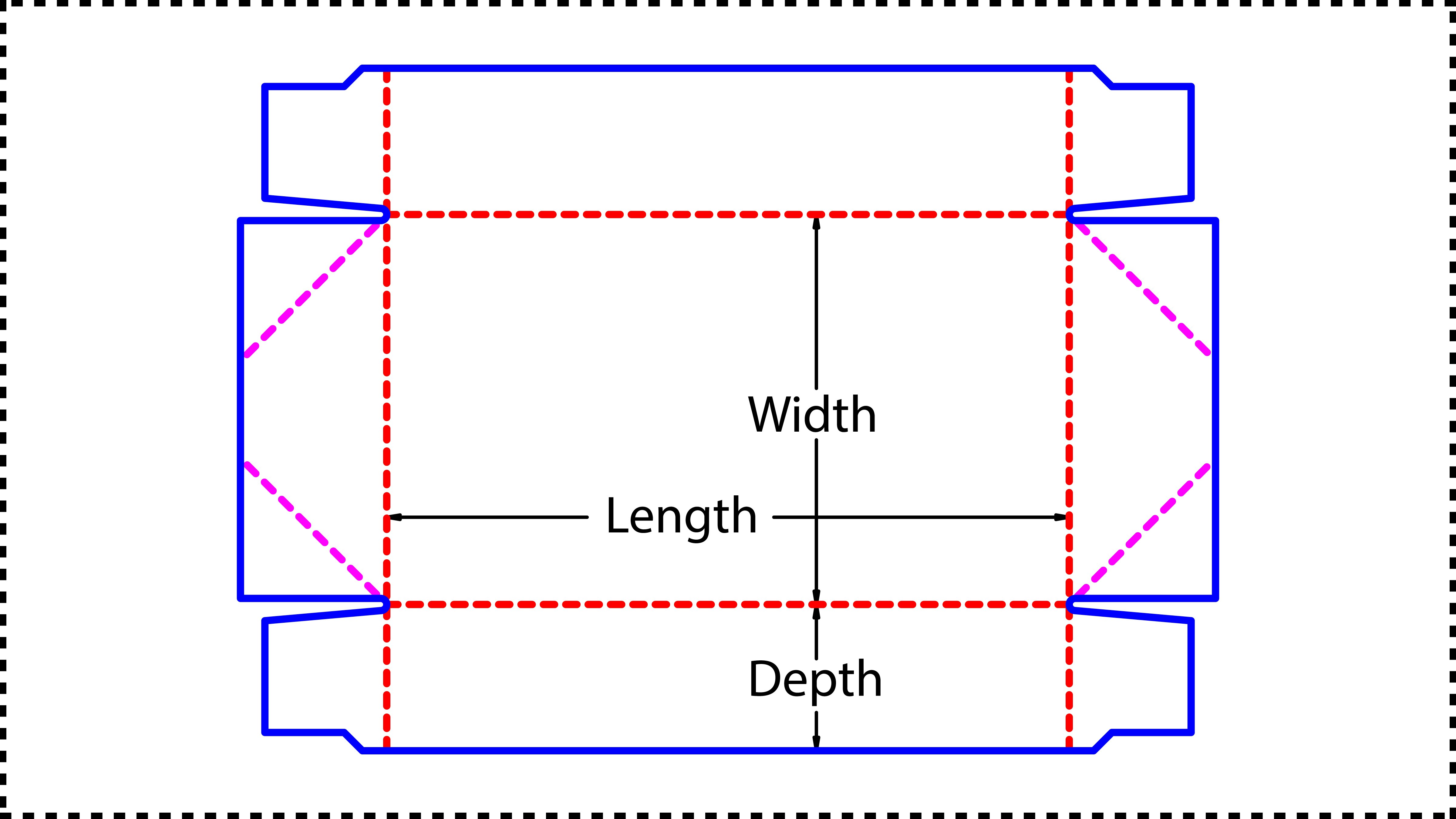

Infold Tray

@LayeredPaperArt

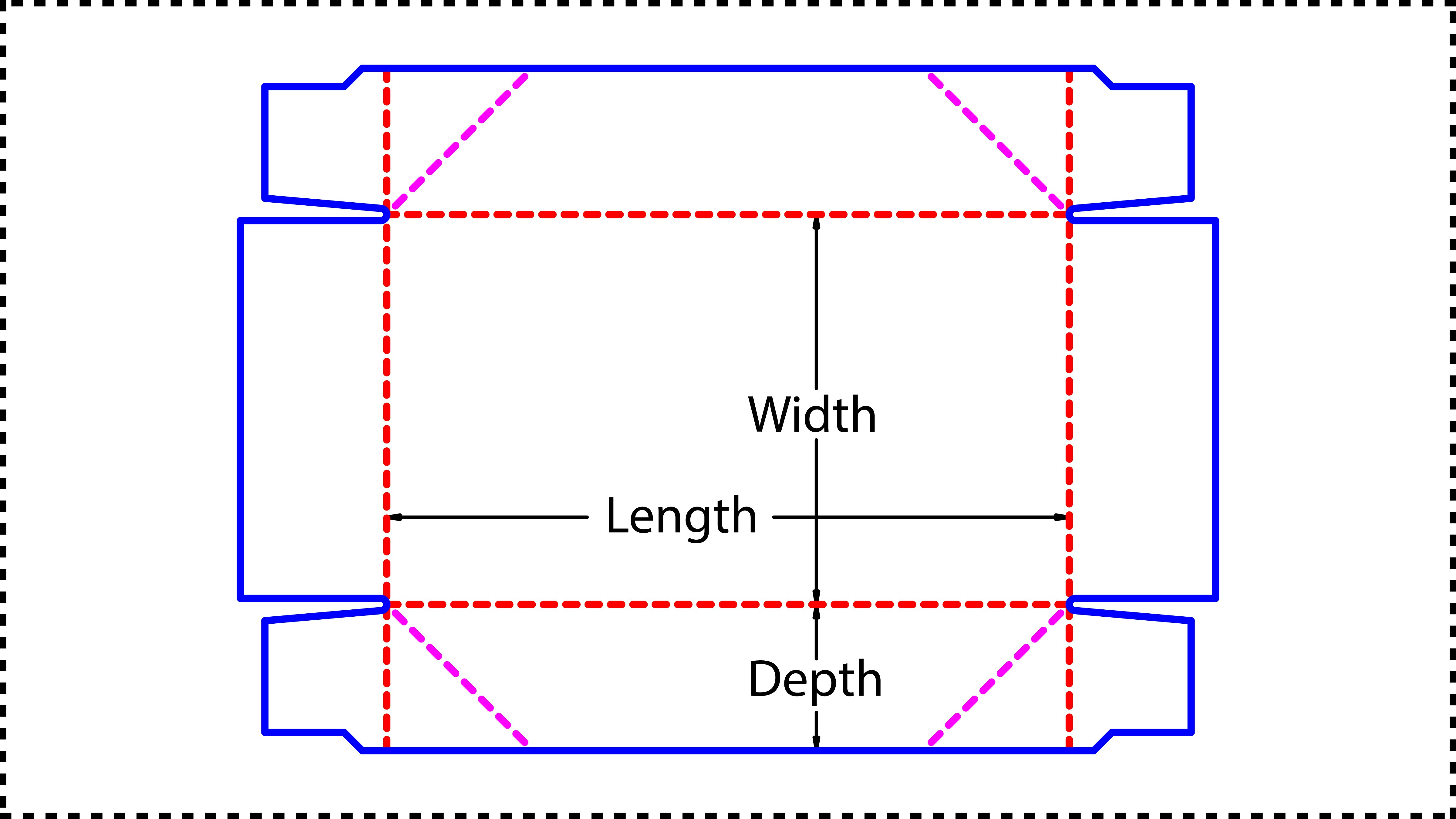

Outfold Tray

@LayeredPaperArt

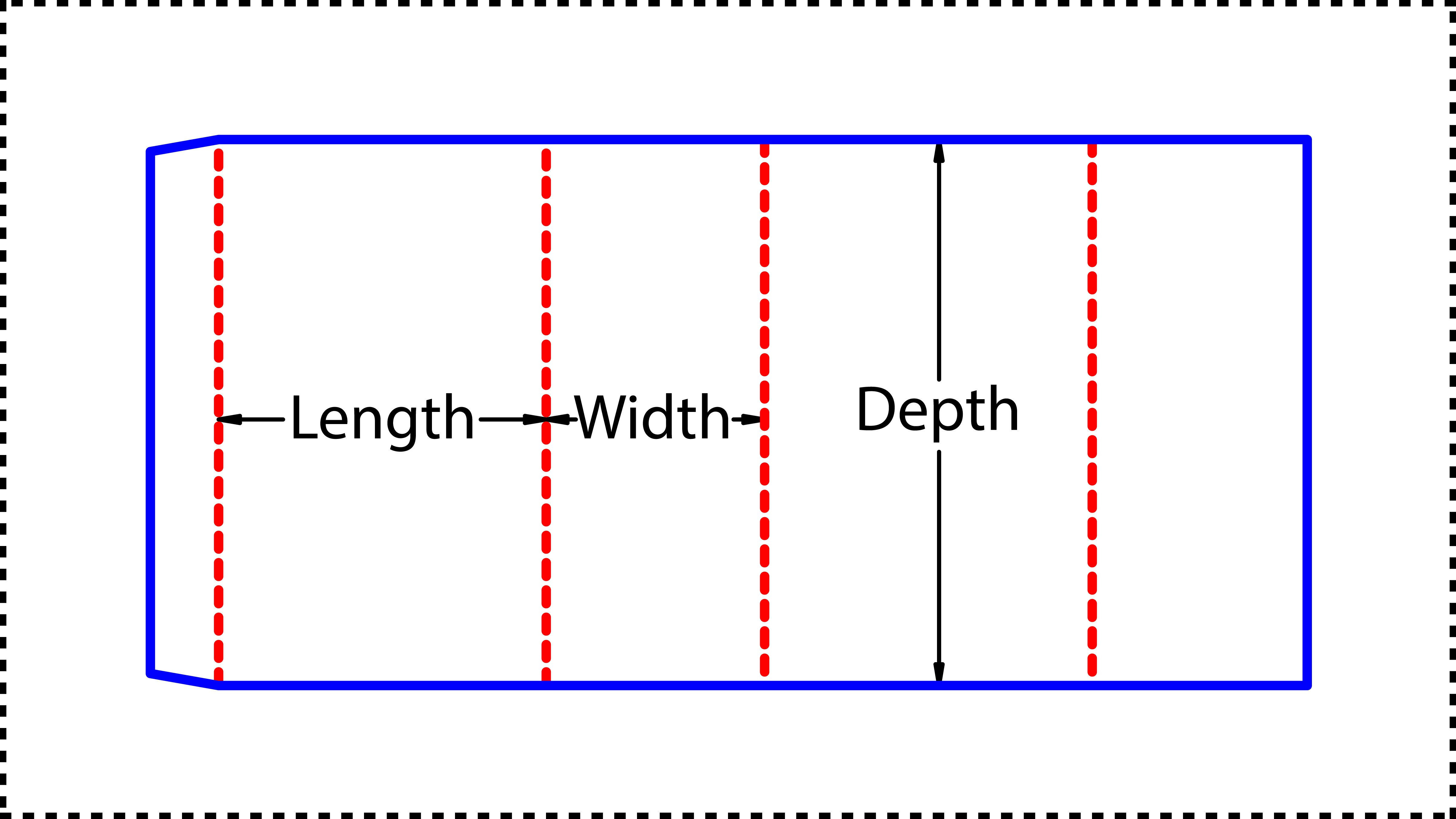

Sleeve

@LayeredPaperArt

• Thanks to @forresto for the math help

• Thanks to @forresto for the clip modifier

• Thanks to @forresto for the dashed modifier
