Miniature_Bar

Beta project, but I just did a test cut and fixed the issues I saw, so... fingers crossed, It should assemble correctly.

I wouldn't adjust any parameters quite yet, I have not tested that.

Assembly

1. Lay "Front" with markings down on a surface that you can clean glue off.

2. Place one "Side" on either side of the "Front" (form an "H" shape with the "Front" and the "Shelf")

3. Place the "Shelf" about mid height between the sides.

4. Glue assembly together and let it set.

5. Glue "Front Ornament" to cover the score marks on the "Front"

6. Glue "SideUnderRail" to the top of each "Side" (Flat on, flush with the top)

7. Glue "FrontUnderRail to the top of the "Front" (should cover the ends of the "Side Under Rail" from the last step.

8. Glue "SideOverRail" to the "SideUnderRail" (Flat flush with the top)

9. Glue the "FrontOverRail" to the "FrontUnderRail" (Flat flush with the top)

10. Glue the "Top" on ensuring that it is centered on the assembly side to side, and that it is flush with the exposed ends of the "Side" pieces.

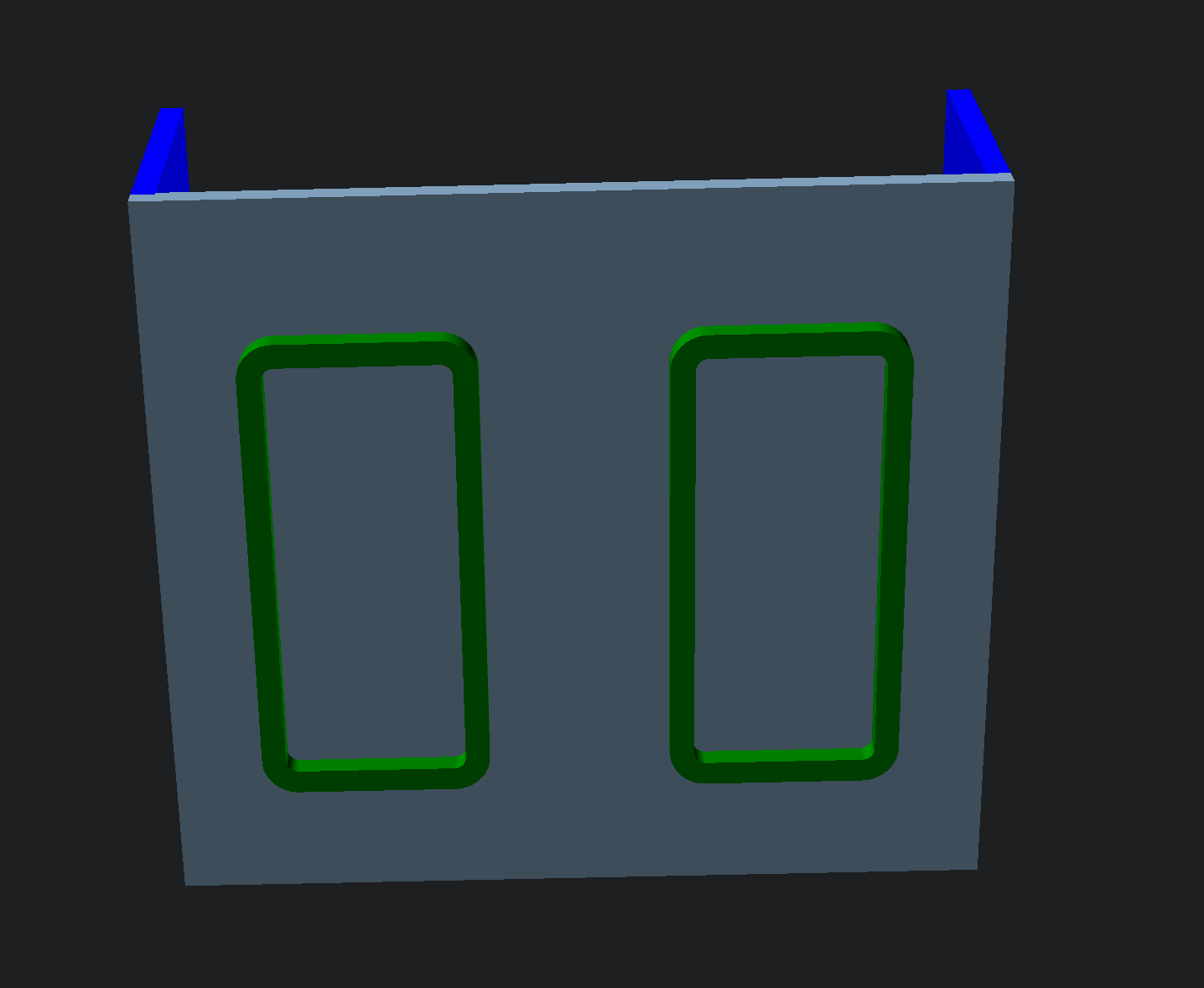

Steps 1-4

Step 5

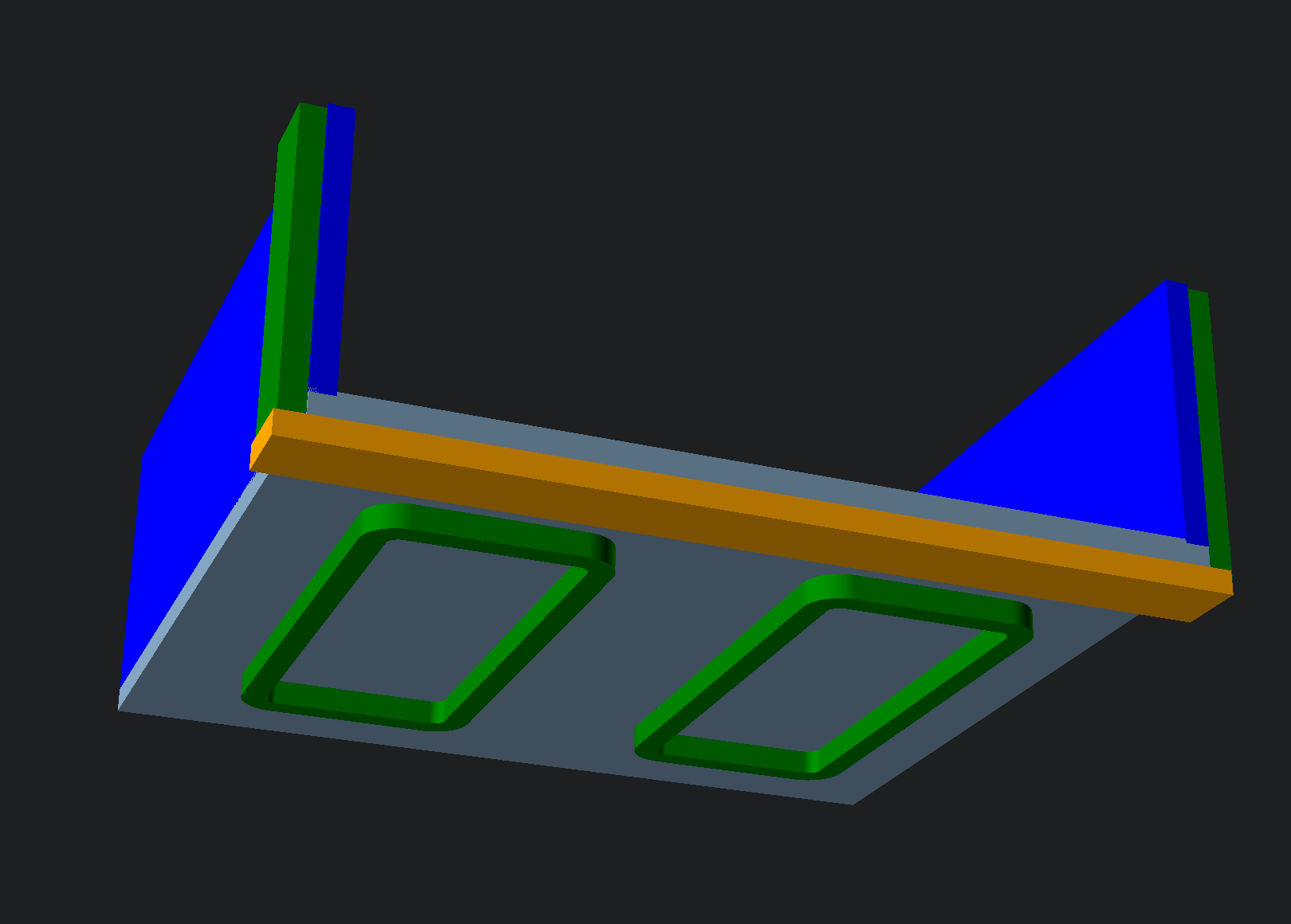

steps 6-7

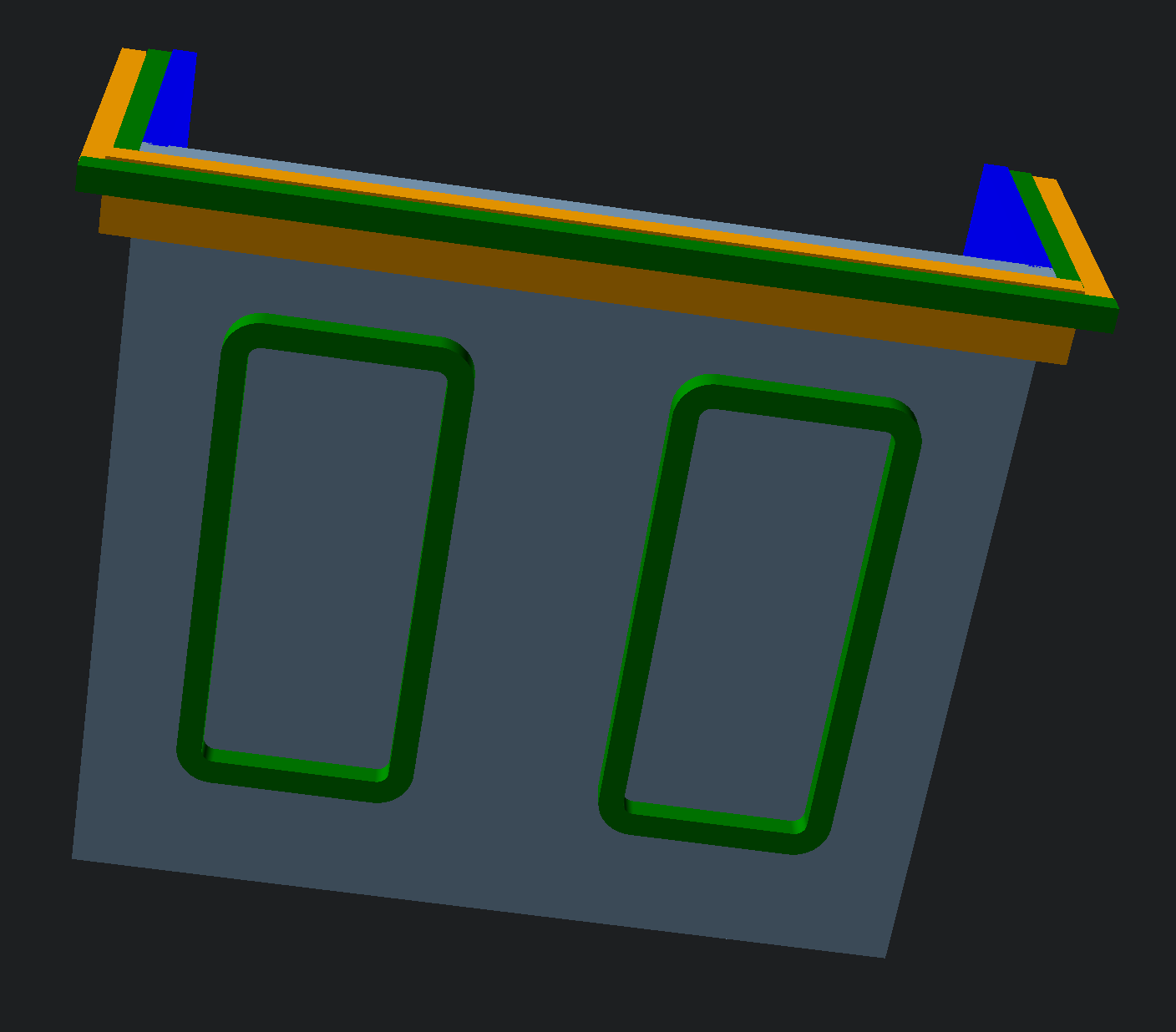

step 8-9

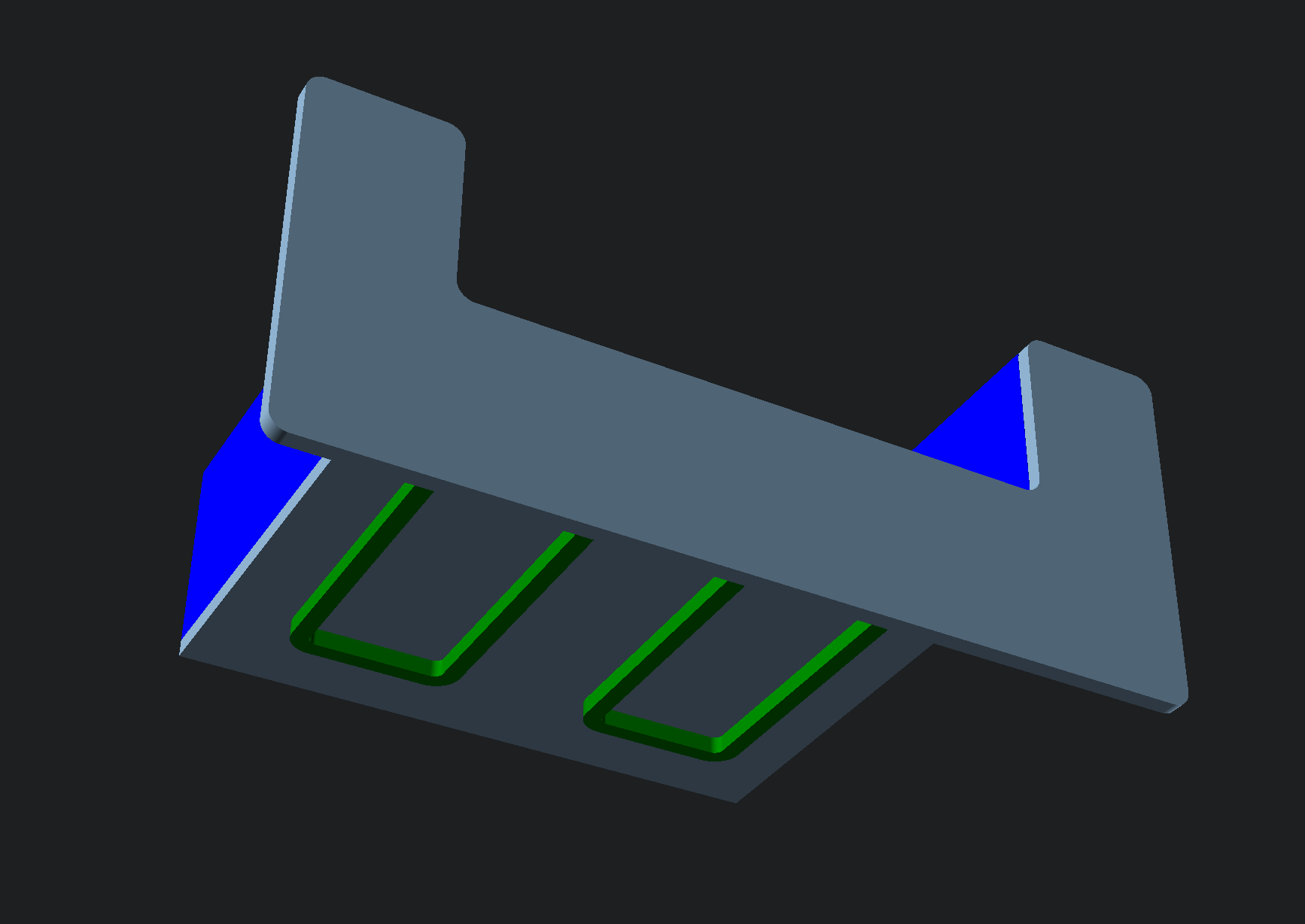

step 10
